Maintain a module using the original host.call SDK

sdk-compat/
  manifest.json
  main.mjs
  recipes.mjs
  styles.css
  LICENSE.txt

python -m json.tool manifest.json
python -m zipfile -c ../sdk-compat-1.0.0.zip manifest.json main.mjs recipes.mjs styles.css LICENSE.txt
python -m zipfile -l ../sdk-compat-1.0.0.zip

async ({host,signal}) => {
  const items=[];let cursor=null;
  do {
    const page=await host.call('actor.list',{limit:50,cursor},{signal});
    items.push(...page.items);cursor=page.nextCursor;
  } while(cursor&&!signal.aborted);
  return items;
}

async ({host,signal},v) => ({
  actor:await host.call('actor.read',{id:v.id},{signal}),
  sheet:await host.call('actor.data.read',{id:v.id},{signal})
})

async ({api,host,signal},v) => {
  const type=(await api.actors.state({}, {signal})).actorTypes[0]?.id;
  if(!type)throw new Error('Choose a system with an actor type');
  return host.call('actor.create',{name:v.name,type},{signal});
}

async ({host,signal},v) => {
  const before=await host.call('actor.read',{id:v.id},{signal});
  return host.call('actor.update',{id:v.id,expectedRevision:before.revision,changes:{name:v.name}},{signal});
}

async ({host,signal},v) => {
  const before=await host.call('actor.data.read',{id:v.id},{signal});
  const data={...before.data,workshop:{note:v.note}};
  return host.call('actor.data.update',{id:v.id,expectedRevision:before.revision,data},{signal});
}

async ({host,signal},v) => ({
  token:await host.call('token.read',{id:v.id},{signal}),
  sheet:await host.call('token.data.read',{id:v.id},{signal})
})

async ({host,signal},v) => {
  const token=await host.call('token.read',{id:v.id},{signal});
  return host.call('token.move',{id:v.id,expectedRevision:token.revision,position:{x:v.x,y:v.y}},{signal});
}

async ({host,signal},v) => {
  const before=await host.call('token.data.read',{id:v.id},{signal});
  return host.call('token.data.update',{id:v.id,expectedRevision:before.revision,data:{...before.data,workshop:{note:v.note}}},{signal});
}

async ({host,signal},v) => {
  if(!v.confirm)throw new Error('Confirm the disposable actor');
  const actor=await host.call('actor.read',{id:v.id},{signal});
  return host.call('actor.delete',{id:v.id,expectedRevision:actor.revision},{signal});
}

{
  "id": "tutorial.sdk-compat",
  "name": "Original SDK workshop",
  "version": "1.0.0",
  "sdk": {
    "requires": ">=1.0.0 <2.0.0",
    "tested": "1.0.0"
  },
  "entry": "main.mjs",
  "description": "Concrete actor/token DTOs, opaque revisions and the remaining multipart/local operations.",
  "author": "Gravewright documentation",
  "license": "MIT"
}

import {recipes} from './recipes.mjs';
export default {
  start({styles}) { styles.use('styles.css'); },
  register({register}) {
    register("scene.controls", ({root,api,host,assets,storage,context,events,viewport,signal,onDispose}) => {
      const doc=root.ownerDocument;
      const button=doc.createElement('button');
      button.type='button';button.className='tutorial-launcher';
      button.textContent="Original SDK workshop";
      root.append(button);
      for(const type of ['pointerdown','mousedown'])button.addEventListener(type,event=>event.stopPropagation(),{signal});
      let modal,pending=false;
      button.addEventListener('click',event=>{
        event.stopPropagation();
        if(modal?.isConnected) { modal.focus();return; }
        const panel=doc.createElement('section');
        panel.className="tutorial-workbench-sdk-compat";
        panel.setAttribute('role','dialog');panel.setAttribute('aria-modal','true');
        panel.setAttribute('aria-label',button.textContent);panel.tabIndex=-1;
        const title=doc.createElement('h2');title.textContent=button.textContent;panel.append(title);
        const choose=doc.createElement('select');choose.setAttribute('aria-label','Action');
        for(const recipe of recipes) {
          const option=doc.createElement('option');option.value=recipe.id;option.textContent=recipe.label;choose.append(option);
        }
        const form=doc.createElement('form'),fields=doc.createElement('div');
        const description=doc.createElement('p');
        const run=doc.createElement('button');run.type='submit';run.textContent='Run action';
        const close=doc.createElement('button');close.type='button';close.textContent='Close';
        const output=doc.createElement('pre');output.setAttribute('role','status');output.setAttribute('aria-live','polite');
        form.append(description,fields,run,close,output);panel.append(choose,form);
        function renderFields(){
          const recipe=recipes.find(item=>item.id===choose.value);fields.replaceChildren();
          description.textContent=recipe.description;
          for(const field of recipe.fields||[]) {
            const label=doc.createElement('label');label.textContent=field.label;
            const input=doc.createElement('input');input.name=field.name;input.type=field.type||'text';
            if(field.type==='number')input.step=String(field.step??'any');
            if(field.type==='checkbox')input.checked=!!field.value;
            else if(field.type!=='file')input.value=String(field.value??'');
            input.required=!!field.required;
            if(field.accept)input.accept=field.accept;
            label.append(input);fields.append(label);
          }
          output.textContent='';
        }
        choose.addEventListener('change',renderFields,{signal});renderFields();
        form.addEventListener('submit',async event=>{
          event.preventDefault();if(pending)return;
          const recipe=recipes.find(item=>item.id===choose.value),values={};
          for(const input of fields.querySelectorAll('input')) {
            values[input.name]=input.type==='file'?input.files[0]:input.type==='checkbox'?input.checked:input.type==='number'?Number(input.value):input.value;
          }
          pending=true;choose.disabled=true;run.disabled=true;close.disabled=true;
          for(const input of fields.querySelectorAll('input'))input.disabled=true;
          output.textContent='Running…';
          try {
            const value=await recipe.run({api,host,assets,storage,context,events,viewport,signal,onDispose},values);
            if(!signal.aborted)output.textContent=typeof value==='string'?value:JSON.stringify(value??null,null,2);
          } catch(error) {
            if(!signal.aborted)output.textContent=String(error.code||error.message||'unavailable');
          } finally {
            pending=false;
            if(!signal.aborted){choose.disabled=false;run.disabled=false;close.disabled=false;for(const input of fields.querySelectorAll('input'))input.disabled=false;}
          }
        },{signal});
        close.addEventListener('click',()=>void modal.close(),{signal});
        modal=api.ui.openModal(panel,{canClose:()=>!pending||signal.aborted});
      },{signal});
      onDispose(()=>{button.remove();if(modal)void modal.close();});
    });
  },
  stop() {}
};

export const recipes=[
{
  id:"pages",

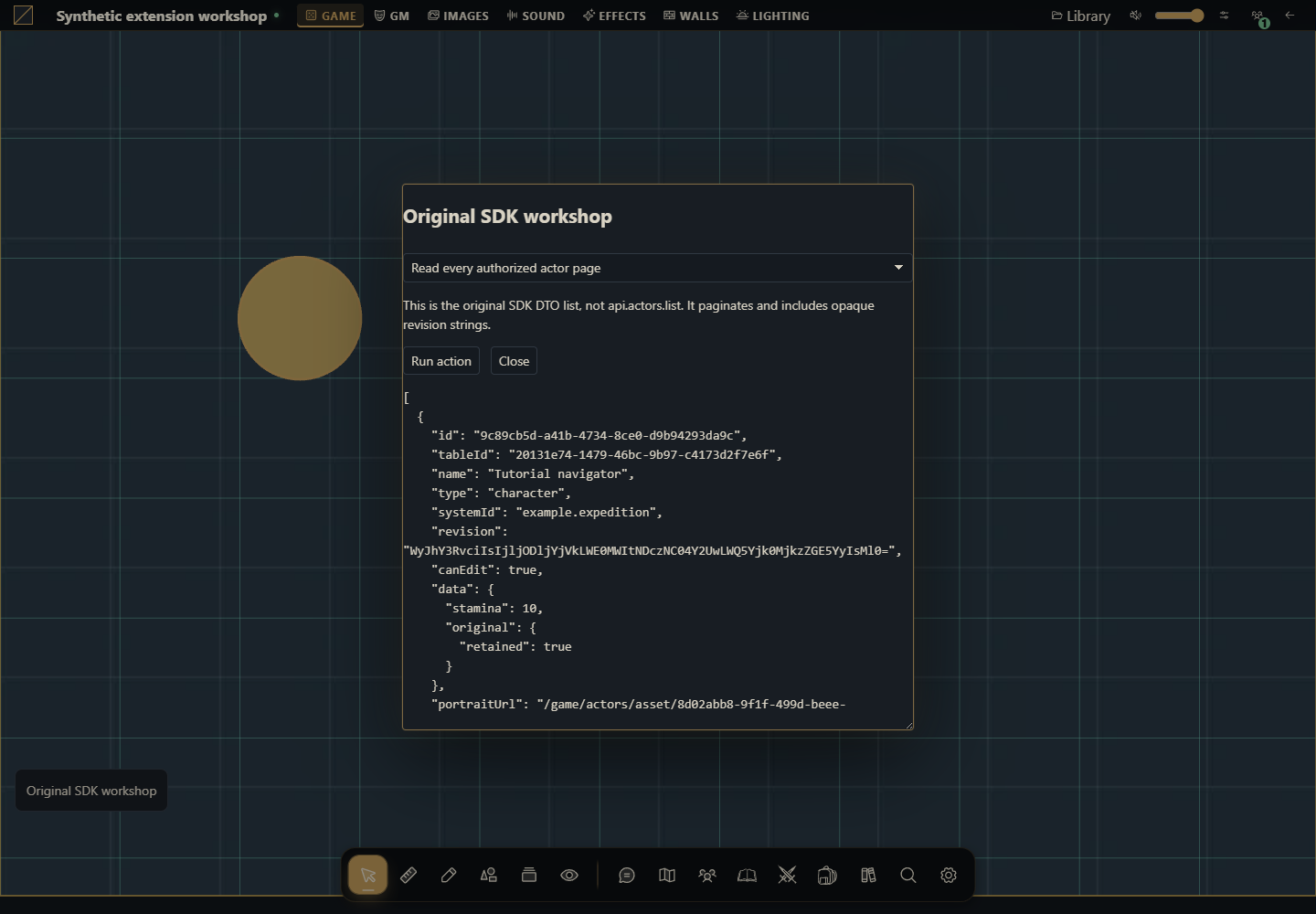

  label:"Read every authorized actor page",
  description:"This is the original SDK DTO list, not api.actors.list. It paginates and includes opaque revision strings.",
  fields:[],
  run:async ({host,signal}) => {
  const items=[];let cursor=null;
  do {
    const page=await host.call('actor.list',{limit:50,cursor},{signal});
    items.push(...page.items);cursor=page.nextCursor;
  } while(cursor&&!signal.aborted);
  return items;
}
},
{
  id:"read",
  label:"Read one actor DTO and its data revision",
  description:"Paste a readable actor UUID. Actor metadata and sheet data have different revision domains.",
  fields:[
  {
    "name": "id",
    "label": "Actor ID",
    "value": "",
    "type": "text",
    "required": true
  }
],
  run:async ({host,signal},v) => ({
  actor:await host.call('actor.read',{id:v.id},{signal}),
  sheet:await host.call('actor.data.read',{id:v.id},{signal})
})
},
{
  id:"create",
  label:"Create a disposable actor through host.call",
  description:"The domain API discovers the selected system type. The legacy create schema accepts name/type, not an arbitrary actor data payload.",
  fields:[
  {
    "name": "name",
    "label": "Actor name",
    "value": "SDK workshop scout",
    "type": "text",
    "required": true
  }
],
  run:async ({api,host,signal},v) => {
  const type=(await api.actors.state({}, {signal})).actorTypes[0]?.id;
  if(!type)throw new Error('Choose a system with an actor type');
  return host.call('actor.create',{name:v.name,type},{signal});
}
},
{
  id:"rename",
  label:"Rename with the legacy metadata revision",
  description:"Use the disposable actor. changes contains only supported metadata changes.",
  fields:[
  {
    "name": "id",
    "label": "Actor ID",
    "value": "",
    "type": "text",
    "required": true
  },
  {
    "name": "name",
    "label": "New name",
    "value": "SDK navigator",
    "type": "text",
    "required": true
  }
],
  run:async ({host,signal},v) => {
  const before=await host.call('actor.read',{id:v.id},{signal});
  return host.call('actor.update',{id:v.id,expectedRevision:before.revision,changes:{name:v.name}},{signal});
}
},
{
  id:"data",
  label:"Preserve a complete actor JSON while changing one owned field",
  description:"Use an external example system that accepts opaque original JSON, such as Example Expedition. workshop is owned by this example; do not overwrite fields belonging to another package.",
  fields:[
  {
    "name": "id",
    "label": "Actor ID",
    "value": "",
    "type": "text",
    "required": true
  },
  {
    "name": "note",
    "label": "Original workshop note",
    "value": "Original test note",
    "type": "text",
    "required": true
  }
],
  run:async ({host,signal},v) => {
  const before=await host.call('actor.data.read',{id:v.id},{signal});
  const data={...before.data,workshop:{note:v.note}};
  return host.call('actor.data.update',{id:v.id,expectedRevision:before.revision,data},{signal});
}
},
{
  id:"token-read",
  label:"Read token center coordinates and its own sheet data",
  description:"Activate an existing scene and use a token from that scene. This package mounts scene.controls so the legacy scene scope is present.",
  fields:[
  {
    "name": "id",
    "label": "Token ID",
    "value": "",
    "type": "text",
    "required": true
  }
],
  run:async ({host,signal},v) => ({
  token:await host.call('token.read',{id:v.id},{signal}),
  sheet:await host.call('token.data.read',{id:v.id},{signal})
})
},
{
  id:"token-move",
  label:"Move a token using its own opaque revision",
  description:"Use a token you control and an in-bounds target center. The server converts scene pixels into its grid geometry.",
  fields:[
  {
    "name": "id",
    "label": "Token ID",
    "value": "",
    "type": "text",
    "required": true
  },
  {
    "name": "x",
    "label": "Center X in scene pixels",
    "value": 160,
    "type": "number",
    "required": true
  },
  {
    "name": "y",
    "label": "Center Y in scene pixels",
    "value": 160,
    "type": "number",
    "required": true
  }
],
  run:async ({host,signal},v) => {
  const token=await host.call('token.read',{id:v.id},{signal});
  return host.call('token.move',{id:v.id,expectedRevision:token.revision,position:{x:v.x,y:v.y}},{signal});
}
},
{
  id:"token-data",
  label:"Update the token’s resolved data without replacing unrelated fields",
  description:"For a linked token this edits actor data; for an independent token it edits its snapshot. Use only the original opaque-JSON example system.",
  fields:[
  {
    "name": "id",
    "label": "Token ID",
    "value": "",
    "type": "text",
    "required": true
  },
  {
    "name": "note",
    "label": "Original workshop note",
    "value": "Snapshot-only note",
    "type": "text",
    "required": true
  }
],
  run:async ({host,signal},v) => {
  const before=await host.call('token.data.read',{id:v.id},{signal});
  return host.call('token.data.update',{id:v.id,expectedRevision:before.revision,data:{...before.data,workshop:{note:v.note}}},{signal});
}
},
{
  id:"delete",
  label:"Delete the disposable legacy actor",
  description:"Remove only an unused actor created by this tutorial, with no scene tokens. New integrations should prefer the domain API, whose native deletion includes token/automation cleanup.",
  fields:[
  {
    "name": "id",
    "label": "Disposable actor ID",
    "value": "",
    "type": "text",
    "required": true
  },
  {
    "name": "confirm",
    "label": "I selected the disposable actor",
    "value": false,
    "type": "checkbox",
    "required": false
  }
],
  run:async ({host,signal},v) => {
  if(!v.confirm)throw new Error('Confirm the disposable actor');
  const actor=await host.call('actor.read',{id:v.id},{signal});
  return host.call('actor.delete',{id:v.id,expectedRevision:actor.revision},{signal});
}
}
];

.gw-module-root[data-module-id="tutorial.sdk-compat"] .tutorial-launcher { position: fixed; left: 16px; bottom: 112px; z-index: 10; padding: var(--space-3); border: 1px solid var(--border); border-radius: var(--radius-md); background: var(--surface); color: var(--text); font-size: 14px; pointer-events: auto; max-width: min(440px, calc(100vw - 32px)); white-space: normal; }
.tutorial-workbench-sdk-compat { width: min(640px, calc(100vw - 48px)); padding: var(--space-5); font-size: 14px; }
.tutorial-workbench-sdk-compat label { display: block; margin: var(--space-3) 0; }
.tutorial-workbench-sdk-compat input, .tutorial-workbench-sdk-compat select { display: block; width: 100%; margin-top: var(--space-2); }
.tutorial-workbench-sdk-compat pre { max-height: 360px; max-width: 100%; overflow: auto; white-space: pre-wrap; overflow-wrap: anywhere; }
.tutorial-workbench-sdk-compat button { margin-right: var(--space-3); }

MIT License

Copyright (c) 2026 Gravewright contributors

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Migrate this complete host.call module to the domain API on Gravewright 0.3.0. Match each DTO and signature explicitly, preserve snapshots and authorization, and explain which revision format and request receipt behavior changes. Deliver complete files and tests rather than renaming methods mechanically.
